Leaf Stopper TILEGUARD

Gutter Guard for Concrete and Terracotta Tile Roofs

TILEGUARD™ is Leaf Stopper’s purpose-built gutter guard system for compatible concrete and terracotta tiled roofs commonly found across Australia.

Leaves, twigs, bark and wind-blown debris can accumulate in open gutters, restricting downpipe entrances and creating another difficult maintenance job around the home. TILEGUARD™ helps reduce larger debris entering the gutter while allowing rainwater to pass through the aluminium Mesh Shield into the drainage system.

For homeowners, this can mean fewer extensive gutter-cleaning jobs, less exposure to repeated ladder work and greater confidence that the roofline is easier to inspect and maintain before storms, heavy leaf fall and bushfire season.

See How TILEGUARD™ Protects Tiled Roofs

Watch this product overview to learn how TILEGUARD™ connects the roof tiles to the gutter edge and helps protect the drainage channel beneath.

Designed for Australian Tile Roof Profiles

TILEGUARD™ is designed to suit many common concrete and terracotta roof tiles. The Mesh Shield is positioned beneath the appropriate row of tiles and extends over the gutter, where Trimets secure it to a compatible external gutter edge.

This creates an inclined protective surface that helps keep larger debris above the gutter channel. Dry leaves may move from the surface under suitable wind conditions, but wet leaves, branches and matted debris can still remain and should be cleared when required.

High-Profile Tiles and Expansion Cuts

Some higher-profile or deeply shaped tiles require additional care during installation. Carefully positioned expansion cuts may be needed so the Mesh Shield follows the tile profile without excessive bunching, tension or distortion.

Always refer to the current TILEGUARD™ installation guide before cutting the mesh. Poorly positioned cuts can create unnecessary gaps or affect the finished appearance.

Part of the Leaf Stopper Roof Protection System Family

Leaf Stopper is not a single universal mesh product. It is a family of systems designed around different Australian roof profiles and gutter configurations.

• CORROGUARD®: Traditional curved corrugated metal roofs
• TILEGUARD™: Compatible concrete and terracotta tiled roofs
• DEK-762™: Compatible DEK-762-style metal roof profiles
• DEKGUARD™: Supported flat-based metal roof profiles
• COMGUARD™: Internal box gutters adjoining supported flat-based roof profiles

Choosing the correct system is important because the roof-side installation method, gutter-edge components and required Mesh Shield width differ between roof types.

How Leaf Stopper Mesh Shield Works

Mesh Shield forms the protective surface across the gutter. It helps reduce leaves, twigs and larger debris entering the drainage channel while allowing rainwater to pass through the mesh apertures.

The appropriate Mesh Shield depends on the debris surrounding your property, the preferred material strength and any applicable bushfire construction requirements.

Watch the Mesh Shield Overview

Choose the Right Mesh Shield

Standard Mesh

• Aperture: 3.5mm × 3.5mm
• Aluminium thickness: 0.55mm
• Best suited to: General leaves, twigs and larger debris
• Material: Non-combustible aluminium

Premium Mesh

• Aperture: 3.5mm × 3.5mm
• Aluminium thickness: 0.80mm
• Best suited to: Installations where a thicker, stronger mesh is preferred
• Material: Non-combustible aluminium

Premium Mesh has the same aperture as Standard Mesh but uses aluminium that is approximately 46% thicker. It is not a finer-aperture product.

Fine Mesh

• Aperture: 1.8mm × 1.8mm woven mesh
• Aluminium thickness: 0.40mm
• Best suited to: Pine needles, fine seeds and smaller leaf matter
• Material: Non-combustible aluminium
• Bushfire applications: The BAL-rated Mesh Shield option within the Leaf Stopper range

Where Fine Mesh is intended to perform an ember-guard function, confirm the applicable material, aperture and installation requirements with your builder, building certifier or bushfire consultant. Selecting Fine Mesh alone does not establish whole-building BAL compliance.

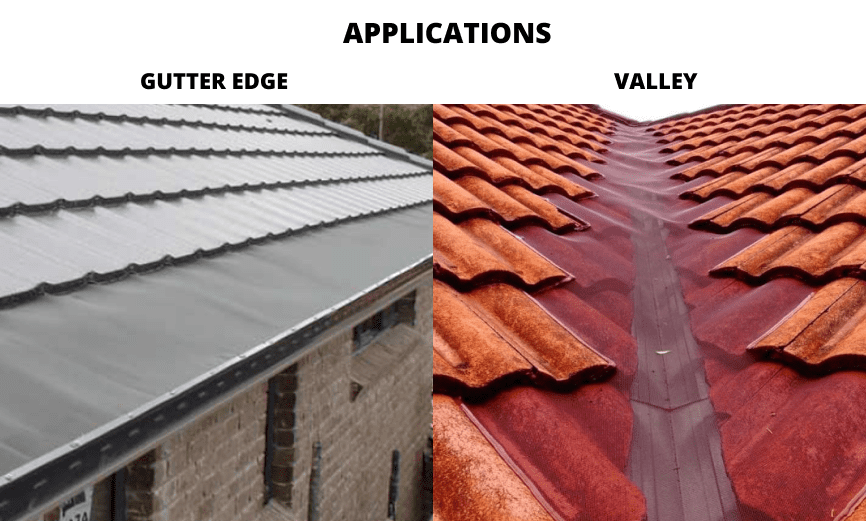

What Comes in a TILEGUARD™ Gutter-Edge Kit?

TILEGUARD™ gutter-edge kits are designed to protect compatible external gutters beneath tiled roofs.

• 500mm-wide aluminium Mesh Shield in your selected mesh type and kit length
• Trimets to secure Mesh Shield to the compatible gutter edge
• Colour-matched hexagonal-head screws
• One free socket with each total purchase for use with the supplied hexagonal-head screws

The wider 500mm Mesh Shield provides material to extend beneath the appropriate row of tiles and across the gutter opening.

What Comes in a TILEGUARD™ Valley Kit?

TILEGUARD™ valley kits are supplied separately for compatible tiled-roof valleys.

• 750mm-wide aluminium Mesh Shield in your selected mesh type and kit length
• Trimets are not required for the valley installation.
• Screws are not required for the standard valley installation.

The 750mm width provides additional coverage across the valley and beneath the adjoining tiles.

Roof valleys can carry concentrated rainwater and may contain complex flashing or roof junctions. Existing leaks, damaged valleys or unusual configurations should be assessed by a roofing professional before gutter guard is installed.

Protection That Supports Safer, Easier Home Ownership

Cleaning gutters on a tiled roof can involve repeated ladder use, working close to fragile roof edges and moving around surfaces that may become slippery or unstable.

This can be particularly difficult for older homeowners, people living alone and families who would prefer to spend less time worrying about concealed gutter blockages.

TILEGUARD™ helps reduce the amount of larger debris entering the gutter, which may reduce how frequently extensive cleaning is required.

It does not make the system maintenance-free, but it can make ongoing roof care more manageable by:

• Keeping larger leaves and twigs above the gutter channel
• Making surface debris easier to see
• Reducing concealed leaf accumulation inside the gutter
• Supporting easier inspection of the roofline
• Reducing the need to remove temporary gutter inserts
• Providing greater peace of mind when storms or heavy leaf fall are forecast

Suitable for a Range of Australian Properties

TILEGUARD™ may be suitable for compatible tiled-roof properties affected by:

• Nearby trees and seasonal leaf fall
• Wind-blown bark, twigs and debris
• Pine needles, fine seeds or smaller leaf matter
• Regular storms and heavy rainfall
• Rainwater harvesting systems
• Bushfire-prone surroundings
• Recurring gutter-cleaning requirements
• Birds or pests attempting to access the protected gutter edge

A correctly installed system may help reduce access around the protected tile and gutter edge, but it cannot guarantee complete bird or vermin exclusion throughout the roof or building.

Supporting Rainwater Harvesting

TILEGUARD™ can provide an initial layer of debris reduction for homes collecting roof water in rainwater tanks.

By helping reduce leaves, twigs and larger organic material entering the gutter, the system may reduce the load placed on downstream screens and filters.

It does not replace:

• First-flush diverters
• Tank inlet screens
• Appropriate filtration
• Tank maintenance
• Water-quality treatment required for the intended use

No Gutter Guard Is Maintenance-Free

TILEGUARD™ is designed to reduce gutter maintenance—not eliminate it.

Fine dust, pollen, silt and small particles may pass through the Mesh Shield and settle inside the gutter. Leaves and branches may also remain on the surface, particularly when wet or caught around roof features.

Periodic inspection remains important to check:

• The surface of the Mesh Shield
• Downpipe entrances
• Gutter corners and ends
• Roof valleys
• Hip and ridge terminations
• Fine sediment inside the gutter
• Damage following storms or other roof work

The appropriate inspection frequency depends on surrounding vegetation, weather, roof design and local conditions.

Plan Future Access with EasyAc®

You may not need to access your gutter or downpipe for years. However, including a removable access point during the original installation means it is already available when an inspection or cleaning task eventually arises.

The EasyAc® range provides screw-free local access through the Mesh Shield without requiring a long section of TILEGUARD™ to be removed.

Steel EasyAc®

• The original EasyAc® model introduced in 2010
• Manufactured from steel
• Uses a louvered lid that slides onto the base plate from one end

EasyAc20®

• Released in 2025
• Longer than the original Steel EasyAc®
• Manufactured from aluminium
• Available in a range of colours
• The lid is positioned beside the slotted tabs and pushed sideways into place

Both models use patented internal tabs that are pushed underneath the Mesh Shield to hold the base plate in place. The removable lid does not rely on screws, so a screwdriver is not required each time it is removed or replaced.

EasyAc® may provide useful access near selected downpipe outlets, corners and other maintenance points. It cannot automatically clear a blockage further down the downpipe or within underground stormwater infrastructure.

Hear from TILEGUARD™ Customers Vicki and Steve

Technical specifications are important, but so is the experience of living with the finished system. Hear from Vicki and Steve about their Leaf Stopper installation and what it has meant for maintaining their home.

TILEGUARD™ Installation Instructions

TILEGUARD™ can be installed by capable DIY customers on suitable, safely accessible tiled roofs. Professional installation is recommended where the building is high, steep, complex or difficult to access.

Take particular care when lifting or working around roof tiles. Older tiles can be brittle, and walking on a tiled roof can cause cracking if weight is placed incorrectly.

Always use appropriate height-safety equipment and follow the current TILEGUARD™ installation instructions.

Watch the TILEGUARD™ Gutter-Edge Installation Video

This video explains how to install the 500mm TILEGUARD™ Mesh Shield from beneath the roof tiles to the external gutter edge.

Watch the TILEGUARD™ Valley Installation Video

This video explains how the 750mm Mesh Shield is installed across a compatible tiled-roof valley.

Download the TILEGUARD™ Installation Guide

Download the TILEGUARD™ Tile Roof Installation Guide

Silicone Requirements

Silicone is not included with the TILEGUARD™ kit.

A suitable silicone product will be required when securing Mesh Shield around hip corners or at the upper ends of ridge sections, as shown in the current installation instructions.

Confirm that the selected sealant is suitable for the roof materials, exposure conditions and intended application.

Typical Installation Tools and Materials

• Suitable drill
• Metal-cutting snips
• Measuring tape
• Appropriate ladder and height-safety equipment
• Gloves and suitable personal protective equipment
• Suitable silicone for the specified hip and ridge details

One socket for the supplied hexagonal-head screws is included with each total purchase.

Delivery Information

Delivery is free when ordering a minimum 10-metre Leaf Stopper kit.

Please provide a physical delivery address. There is no pickup option, and delivery cannot be made to a P.O. Box.

Why Choose TILEGUARD™?

• Purpose-built for compatible concrete and terracotta tiled roofs
• Uses 500mm Mesh Shield for gutter-edge installations
• Uses 750mm Mesh Shield for compatible valley installations
• Available with Standard, Premium or Fine aluminium Mesh Shield
• Helps reduce leaves and larger debris entering the gutter
• May reduce the frequency of extensive gutter cleaning
• Suitable for many common Australian tile profiles
• Can be adapted carefully for certain high-profile tiles using expansion cuts
• Suitable for capable DIY installation or professional installation
• Can be combined with EasyAc® for planned maintenance access
• Part of the broader Leaf Stopper system family for Australian roofs

A Long-Term Approach to Tiled-Roof Gutter Protection

TILEGUARD™ is designed for homeowners who want more than a temporary gutter insert. It combines aluminium Mesh Shield with a fixing method developed specifically for compatible tiled roofs and external gutters.

The system helps reduce larger debris entering the gutter while keeping the roofline inspectable and maintainable.

By choosing the correct Mesh Shield, following the installation instructions and planning future access with EasyAc®, you can create a more resilient and manageable roof-maintenance system for your home.

Frequently Asked Questions

Will TILEGUARD™ work on my tiled roof?

TILEGUARD™ is designed to suit many common concrete and terracotta tile roofs. Some high-profile or unusually shaped tiles may require carefully positioned expansion cuts. Review the installation guide and confirm suitability before ordering.

Can TILEGUARD™ be used on both concrete and terracotta tiles?

Yes. TILEGUARD™ is designed for compatible concrete and terracotta roof tiles. Tile shape, condition and installation details should still be assessed before fitting the system.

How is TILEGUARD™ secured to the roof?

The Mesh Shield is positioned beneath the appropriate row of tiles. At the outer gutter edge, Trimets and colour-matched screws secure the mesh to a compatible external gutter.

Does TILEGUARD™ use tile clips?

The standard TILEGUARD™ installation uses the roof tiles to retain the upper section of Mesh Shield and Trimets at the gutter edge. Do not assume that separate tile clips are included unless they are specifically identified with the selected product.

What is included in the gutter-edge kit?

The gutter-edge kit includes 500mm-wide Mesh Shield, Trimets and colour-matched hexagonal-head screws in quantities appropriate to the selected kit.

What is included in the valley kit?

The valley kit includes a 750mm-wide roll of Mesh Shield in the selected mesh type and kit length. Trimets and screws are not required for the standard valley installation.

Why is the valley Mesh Shield wider?

The 750mm Mesh Shield provides additional material to span the valley and extend beneath the adjoining roof tiles.

Do I receive a socket with my order?

Yes. One free socket is supplied with each total purchase for use with the supplied hexagonal-head screws.

Is silicone included?

No. Silicone is not included. A suitable silicone will be required at specified hip corners and upper ridge terminations, as shown in the installation guide.

Can I install TILEGUARD™ myself?

Capable DIY customers may install TILEGUARD™ on a straightforward and safely accessible roof. Professional installation is recommended for high, steep, complex or difficult-to-access roofs.

Can roof tiles break during installation?

Roof tiles can crack if they are old, brittle or stepped on incorrectly. Work carefully, use appropriate roof-access methods and keep suitable replacement tiles available where necessary.

How much TILEGUARD™ do I need?

Measure the total linear length of the external gutters and valleys you want to protect. Measure separate runs individually and allow for joins, corners and the installation details shown in the current instructions.

Does TILEGUARD™ completely stop gutter cleaning?

No. TILEGUARD™ helps reduce larger debris entering the gutter, but fine sediment and surface debris may still require periodic inspection and cleaning.

Can I flush the gutter through Mesh Shield?

Water may be directed through the Mesh Shield to help move loose fine sediment. For more direct local access, consider installing Steel EasyAc® or EasyAc20® during the original installation.

Is TILEGUARD™ suitable for properties with nearby trees?

Yes. TILEGUARD™ is commonly selected for properties affected by leaves, twigs, bark and other tree debris. Select Standard, Premium or Fine Mesh according to the surrounding debris.

Which mesh should I choose for pine needles?

Fine Mesh is generally the most appropriate Leaf Stopper option for pine needles, fine seeds and smaller leaf matter because it has a 1.8mm × 1.8mm woven aperture.

Is TILEGUARD™ suitable for bushfire-prone properties?

All Leaf Stopper Mesh Shield options are made from non-combustible aluminium. Fine Mesh is the BAL-rated option within the range. Confirm the exact gutter-guard and ember-protection requirements for your property with the appropriate building or bushfire professional.

Does TILEGUARD™ stop birds and pests?

A correctly installed system may help reduce access around the protected tile and gutter edge. It cannot guarantee complete bird or vermin exclusion throughout the roof or building.

Will TILEGUARD™ prevent every gutter blockage or overflow?

No gutter guard can guarantee this. Drainage performance also depends on gutter fall, gutter capacity, downpipe condition, rainfall intensity, overflow provisions and downstream stormwater infrastructure.

Can TILEGUARD™ repair a leaking or damaged tiled roof?

No. Broken tiles, failed flashings, leaking valleys, incorrect gutter fall and blocked downpipes should be addressed before installing the gutter guard.

Can I still inspect my gutters after installation?

Yes. The gutter, valleys and Mesh Shield should remain part of your periodic roof inspection. Adding an EasyAc® access panel can provide removable local access without taking out a long section of mesh.

Is EasyAc® included in the TILEGUARD™ kit?

No. Steel EasyAc® and EasyAc20® are optional access products sold separately.

Is delivery free?

Delivery is free when the order includes a minimum 10-metre Leaf Stopper kit. A physical delivery address is required, and delivery cannot be made to a P.O. Box.
