Preventing Blocked Box Gutters: The Essential Maintenance Checklist

Internal box gutters play a critical role in moving rainwater away from warehouses, commercial buildings and many modern Australian homes. Because they are positioned within the roof structure rather than outside the building edge, a blockage or overflow can be more difficult to notice and may have more serious consequences.

Preventing blocked box gutters requires more than placing a strainer over a downpipe or waiting until water begins to back up. You need to reduce the amount of debris entering the gutter, maintain access to sumps and outlets, and inspect the system according to the conditions surrounding the property.

This guide explains why internal box gutters require special attention, where blockages commonly develop and how the Leaf Stopper COMGUARD™ system helps reduce leaves and larger debris entering the gutter. It also explains how EasyAc access panels can make future inspection and flushing easier.

Why Blocked Box Gutters Are a Serious Risk

A conventional eaves gutter is positioned along the outside edge of the roof. If it overflows, water will often spill visibly over the front or back of the gutter.

An internal box gutter is commonly positioned between roof sections, beside a parapet or within the building footprint. If water cannot reach the intended outlet or overflow provision, it may back up toward flashings, roof junctions or the building interior.

Potential consequences can include:

• Water entering ceiling or wall cavities
• Damage to plasterboard, insulation and internal finishes
• Water affecting stored goods, machinery or electrical equipment
• Moisture remaining concealed inside the roof structure
• Corrosion or deterioration of gutter and roofing materials
• Mould developing where moisture is not detected promptly

The risk does not mean every internal box gutter is inherently faulty. A correctly designed system should incorporate suitable falls, outlets, sumps and overflow provisions. Problems arise when debris, sediment, inadequate maintenance or downstream drainage restrictions prevent the system from operating as intended.

Why Problems May Be Harder to Detect

Internal box gutters are often less visible from ground level than external eaves gutters. A property owner may not see debris accumulating inside the gutter or notice that water is draining slowly.

Visible warning signs may only appear once the system is already restricted. These can include:

• Water stains on ceilings or walls
• Dampness around parapets or roof junctions
• Water discharging through an overflow
• Gurgling from downpipes
• Ponding that remains after rain
• Water backing up during hose testing

Regular inspection is therefore particularly important for buildings with concealed drainage.

What Causes Box-Gutter Blockages?

Box-gutter blockages are rarely caused by one perfectly formed plug. They usually develop as different materials collect and combine over time.

Leaves and Twigs

Leaves and small branches can enter from nearby trees or be carried onto the roof by strong winds. Material may collect around roof junctions, walls, sumps and downpipe outlets.

Once wet, leaf matter becomes heavier and may remain in place rather than moving toward the outlet.

Fine Sediment

Dust, pollen, roof particles and decomposed organic matter can settle inside the gutter. Rainwater may move some loose sediment toward an outlet, but heavier deposits can remain and gradually reduce the effective depth of the channel.

No practical gutter mesh can exclude every microscopic particle while still allowing rainwater through. Periodic inspection and flushing may therefore remain necessary even after gutter guard is installed.

Bird and Pest Activity

Nesting material can obstruct sumps, rainheads and downpipe openings. Birds may also carry sticks, grasses and other material into sheltered roof areas.

A securely installed mesh barrier can help reduce access around the protected box gutter, although no system can guarantee complete pest exclusion throughout the entire roof.

Branches and Storm Debris

Severe weather may deposit larger branches or concentrated debris onto the mesh or directly into an unprotected box gutter.

Following major storms, visible roof areas should be checked from a safe position and inspected more closely where necessary.

Downstream Drainage Restrictions

The box gutter itself may appear clear while a restriction exists further down the downpipe or underground stormwater system.

If water backs up during a controlled hose test despite a clear sump and outlet, the downstream drainage system may require professional investigation.

Critical Box-Gutter Drainage Points

Maintenance should focus on more than the open gutter channel. Several components have a direct influence on how effectively water leaves the roof.

Sumps

A sump is a collection point that directs water from the box gutter into a downpipe or other outlet. Because water and sediment move toward it, the sump can become a natural collection area for leaves and fine material.

Sumps should remain accessible for inspection. Placing an EasyAc panel near a sump can provide access without removing a long section of Mesh Shield.

Downpipe Openings

Leaves gathered directly over a downpipe opening can restrict water even when the pipe itself is clear.

Inspection should confirm that the opening is not covered by sediment, nesting material or loose debris.

Rainheads

Some drainage systems discharge into a rainhead before entering the downpipe. Rainheads should be checked for accumulated material and signs that water has been backing up.

The gutter guard installation should not obstruct a rainhead or interfere with its intended operation.

Overflow Provisions

Overflows provide an alternative path for water when the main drainage system cannot cope or becomes obstructed. Gutter guard should never be installed in a way that blocks, covers or reduces an overflow opening.

If you are uncertain about the drainage or overflow design, consult a qualified roofer, roof plumber or building professional.

Parapet and Wall Junctions

Walls and parapets can trap wind-blown leaves in sheltered areas. Flashings and junctions should be inspected for accumulated debris and signs of water movement.

COMGUARD™ uses Clampers to secure the Mesh Shield along the wall or vertical box-gutter upstand, creating a purpose-designed fixing point for this configuration.

Why In-Gutter Inserts May Be Unsuitable

Foam, brushes and other insert-style gutter guards sit inside the gutter channel. This may appear convenient because the product can often be placed without mechanical fixing.

However, internal box gutters must carry water through a concealed drainage path. Filling part of that channel with an insert may create several practical disadvantages.

• The insert occupies space inside the gutter.
• Leaves and sediment can become trapped within or around it.
• The material may need to be removed before the gutter can be inspected properly.
• Wet organic material may remain concealed beneath the surface.
• The insert may make sumps and outlets more difficult to reach.

An over-the-gutter mesh system takes a different approach. It spans above the gutter channel and helps reduce larger debris entering it.

This preserves the space inside the box gutter for water movement and makes the protection system easier to inspect from above.

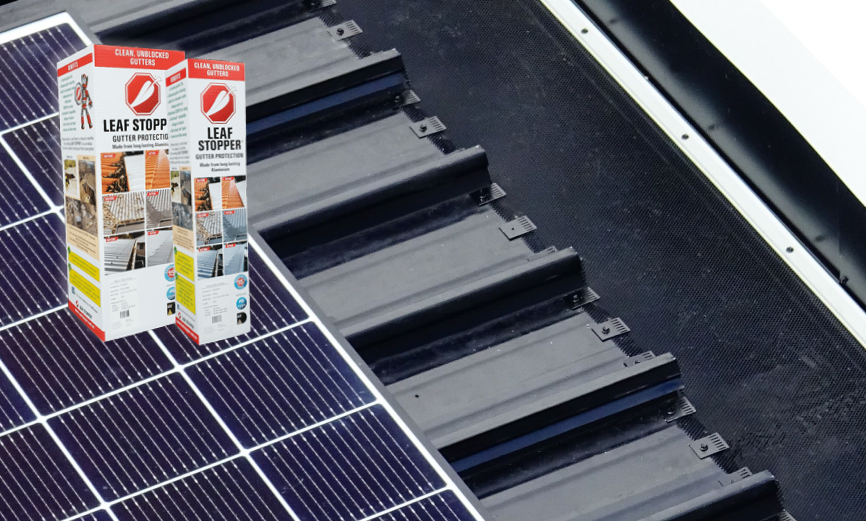

How COMGUARD Helps Protect Box Gutters

COMGUARD™ is the Leaf Stopper system designed specifically for internal box gutters.

The Mesh Shield spans across the gutter between the vertical wall or upstand and the adjoining flat-based metal roof profile.

The system uses:

• Clampers to secure the Mesh Shield to the wall, parapet or vertical box-gutter upstand
• Gripits to secure the opposite side of the Mesh Shield to the flat pan of the adjoining roof profile
• Colour-matched screws to secure the components

COMGUARD™ does not use Trimets because an internal box gutter does not have the same outer lip as a traditional eaves gutter.

It also does not use corrugated saddles or DEKAFast saddles.

What COMGUARD™ Is Designed to Do

COMGUARD™ helps reduce leaves, twigs and larger debris entering the internal box gutter. The mesh creates a physical barrier above the water channel while allowing rainwater to pass through.

It may be used on:

• Warehouses
• Factories and workshops
• Commercial buildings
• Schools and community facilities
• Shopping and retail properties
• Modern residential properties with internal box gutters
• Other buildings with a compatible gutter and roof configuration

What COMGUARD™ Does Not Do

COMGUARD™ does not make the drainage system maintenance-free. It cannot correct an undersized gutter, inadequate outlet, incorrect fall or blocked underground stormwater system.

It should not cover or obstruct sumps, rainheads or overflow provisions.

COMGUARD™ also has no separate valley-protection option. It is ordered according to the length and width of the internal box gutter.

Choosing the Correct COMGUARD Width

COMGUARD™ is available in four Mesh Shield widths:

• 250mm
• 500mm
• 750mm
• 1000mm

The correct width depends on the full span between the Clamper fixing point and the Gripit fixing point.

Do not measure only the open channel at the bottom of the gutter. The mesh needs sufficient width to extend up the wall or vertical upstand and across to the selected fixing position on the roof pan.

Why Correct Measurement Matters

Mesh that is too narrow may not reach both fixing positions securely. Mesh that is substantially wider than required may be difficult to fit and support correctly.

Before ordering:

1. Measure the length of each box-gutter run.
2. Measure the required span from the wall or upstand to the roof fixing position.
3. Identify the adjoining roof manufacturer and profile.
4. Confirm the required Gripit quantity for that profile.
5. Identify the locations of sumps, outlets and overflows.
6. Plan where EasyAc access panels may be required.

If the layout is difficult to measure, speak with Leaf Stopper or arrange an assessment by a suitable installer.

Choosing the Right COMGUARD Mesh

COMGUARD™ is available with all three Leaf Stopper Mesh Shield options.

Standard Mesh

Standard Mesh has a 3.5mm x 3.5mm aperture and is manufactured from 0.55mm aluminium. It is designed for general leaves, twigs and larger debris.

Premium Mesh

Premium Mesh uses the same 3.5mm x 3.5mm aperture as Standard Mesh but is manufactured from 0.80mm aluminium.

It is approximately 46% thicker than Standard Mesh and may be selected where increased mesh strength and durability are preferred.

Premium Mesh is not a finer-aperture product.

Fine Mesh

Fine Mesh has a 1.8mm x 1.8mm woven aperture and is manufactured from 0.40mm aluminium.

It is designed to help reduce smaller material such as pine needles, fine seeds and small leaf matter entering the gutter.

Fine Mesh is the only BAL-rated mesh option in the Leaf Stopper range. Standard and Premium Mesh are non-combustible aluminium but are not BAL-rated.

Properties in bushfire-prone areas should confirm their applicable requirements before selecting a mesh. Visit the Leaf Stopper bushfire protection page for further information.

Will Fine Mesh Stop All Silt?

No. Fine Mesh excludes smaller physical debris than Standard or Premium Mesh, but microscopic dust and sediment can still pass through with rainwater.

Easy access for inspection and flushing remains important regardless of the selected mesh.

Compatible Roof Profiles

COMGUARD™ is designed to connect to supported flat-based metal roof profiles using Gripits.

Common profile families available within the COMGUARD™ range include products from:

• Lysaght
• Metroll
• Stramit

Examples may include:

• Klip-Lok profiles
• Trimdek
• Spandek
• Flatdek and Flatdek II
• Longline 305
• Integrity 820
• Spanrib
• Permalite profiles
• Metlok and Metlock profiles
• Metrospan
• Spanplus 500
• Speed Deck profiles
• CapacityPlus 660
• Monoclad
• Megaclad
• Longspan

The exact manufacturer and profile must be selected when ordering because different roof profiles require different Gripit spacing.

Do not choose a kit based only on visual similarity. Confirm the profile name and dimensions first.

Browse the COMGUARD™ collection to locate the appropriate profile-specific product.

Using EasyAc for Inspection and Maintenance

The EasyAc access panel provides a removable opening within a Leaf Stopper mesh installation.

This allows the gutter below to be inspected without removing or unscrewing a long section of Mesh Shield.

Useful EasyAc Locations

EasyAc may be useful near:

• Box-gutter sumps
• Downpipe outlets
• Rainheads
• Ends of long gutter runs
• Changes in gutter direction
• Areas beneath heavy vegetation
• Locations where fine sediment is likely to collect

The panel should not obstruct the drainage component itself. It should be positioned so the area can be inspected and reached safely.

What Can Be Done Through EasyAc?

An EasyAc access panel can make it easier to:

• Inspect the sump or downpipe opening
• Check for accumulated sediment
• Remove a small localised obstruction
• Direct a garden hose into the gutter
• Confirm whether water is moving toward the outlet
• Assess whether further professional cleaning is required

What EasyAc Cannot Do

EasyAc cannot clear a blockage located further down a downpipe or inside an underground stormwater pipe.

It also does not replace safe roof access, a compliant drainage design or the need to inspect the wider system.

EasyAc is purchased separately and is not automatically included with every Leaf Stopper kit.

Box-Gutter Inspection Checklist

There is no single inspection frequency that suits every building. A property surrounded by trees or exposed to industrial dust may need more frequent checks than an open property with little vegetation.

Inspections should also be considered after major storms, high winds, nearby tree work or any sign of unusual drainage.

1. Inspect the Mesh Surface

Look for:

• Branches or heavy debris resting on the mesh
• Matted leaves restricting the apertures
• Damage caused by storms or foot traffic
• Loose, sagging or displaced mesh

Remove surface material using a suitable method that does not damage the mesh or roof.

2. Check Clampers and Gripits

Confirm that the Clampers, Gripits and screws remain secure.

Do not walk directly on the Mesh Shield or place concentrated weight on unsupported sections.

3. Inspect Sumps and Outlets

Open nearby EasyAc panels where installed and check that the sump and downpipe entrance are not restricted.

Remove loose sediment or localised debris where it can be reached safely.

4. Check Overflows

Confirm that overflow openings remain unobstructed. Gutter guard, debris, sealants or building work should not restrict their operation.

5. Look for Ponding

Water remaining inside the gutter after surrounding surfaces have dried may indicate sediment buildup, inadequate fall or a drainage restriction.

Persistent ponding should be assessed by an appropriate roofing or plumbing professional.

6. Perform a Controlled Hose Test

Where safe and appropriate, introduce a moderate flow of water into the gutter and observe whether it moves toward the sump or outlet.

Stop the test if water begins backing up or approaching flashings and overflow levels.

A slow or gurgling discharge may indicate a downstream blockage.

7. Check the Surrounding Roof

Inspect visible flashings, wall junctions and roof pans for debris, damage or signs that water has been travelling outside the intended drainage path.

8. Record Recurring Problems

If the same area repeatedly collects sediment or drains slowly, document the issue and arrange professional investigation rather than treating each blockage as an isolated event.

When to Call a Professional

Box gutters are often located on high, wide or complex roofs. Professional assistance may be appropriate when:

• The roof is steep, high or difficult to access
• The building is commercial or industrial
• The system includes concealed sumps or complex overflows
• Water has entered the building
• Ponding remains after the gutter is cleared
• A blockage appears to be inside a downpipe or underground drain
• The gutter, flashings or roof sheets appear damaged
• The roof profile cannot be identified confidently
• You are not equipped for safe work at height

Gutter guard installation should not be used to conceal an existing drainage or roof-leak problem. Any known defect should be investigated before the system is covered.

You can find a Leaf Stopper installer for help with installation on a larger or more complex roof.

A Practical Approach to Preventing Blocked Box Gutters

Preventing blocked box gutters requires three complementary steps:

1. Reduce debris entry: Use a correctly measured COMGUARD™ system to help keep larger leaves, twigs and nesting material above the gutter channel.
2. Maintain inspection access: Position EasyAc panels near sumps, downpipes and other critical drainage points.
3. Inspect according to conditions: Check the roof after severe weather, during heavy seasonal debris and whenever drainage performance changes.

COMGUARD™ is available in four widths and three mesh types to suit different box-gutter spans, surrounding debris and property requirements.

The system must also be matched to the adjoining flat-based roof profile so the correct number of Gripits can be supplied.

Browse the COMGUARD™ range or contact Leaf Stopper before ordering if you are uncertain about the box-gutter width, roof profile or required access layout.

Frequently Asked Questions

Why are blocked box gutters more serious than blocked external gutters?

Box gutters are commonly located within the roof or building footprint. If water cannot reach an outlet or overflow provision, it may move toward flashings, roof cavities or the building interior rather than simply spilling outside.

What usually blocks a box gutter?

Common causes include leaves, twigs, nesting material, fine sediment and blockages around sumps or downpipe openings. Restrictions may also occur further down the stormwater system.

Can gutter guard prevent every box-gutter blockage?

No. COMGUARD™ helps reduce larger debris entering the gutter, but fine sediment can still pass through the mesh and downstream drainage can still become restricted.

What is COMGUARD™?

COMGUARD™ is the Leaf Stopper gutter guard system designed for internal box gutters.

What widths does COMGUARD™ come in?

COMGUARD™ Mesh Shield is available in 250mm, 500mm, 750mm and 1000mm widths.

Which mesh types are available?

COMGUARD™ is available with Standard, Premium and Fine Mesh.

Does COMGUARD™ use Trimets?

No. COMGUARD™ uses Clampers to secure the mesh to the wall or vertical upstand because internal box gutters do not have the same outer lip as traditional eaves gutters.

What secures COMGUARD™ to the roof?

Gripits secure the opposite side of the Mesh Shield to the flat pan of the adjoining supported metal roof profile.

Does COMGUARD™ have a valley option?

No. COMGUARD™ does not have a separate valley-protection option. It is measured and ordered for the internal box gutter.

What is EasyAc used for?

EasyAc provides removable access through the mesh for gutter, sump and downpipe inspection.

Should EasyAc be installed at every sump?

Access should be planned around the individual drainage layout. Installing EasyAc near important sumps, outlets and other likely sediment collection points can simplify future inspection.

How often should a protected box gutter be inspected?

Inspection frequency depends on nearby vegetation, roof exposure, dust levels and local weather. Checks should also be considered after major storms and during heavy seasonal leaf fall.

Which COMGUARD™ mesh is BAL-rated?

Fine Mesh is the only BAL-rated option in the Leaf Stopper range. Standard and Premium Mesh are non-combustible aluminium but are not BAL-rated.

Can I install COMGUARD™ myself?

DIY installation may be possible on a suitable, safely accessible roof. Professional installation is recommended for high, complex, commercial or industrial buildings and whenever safe working-at-height requirements cannot be met.
